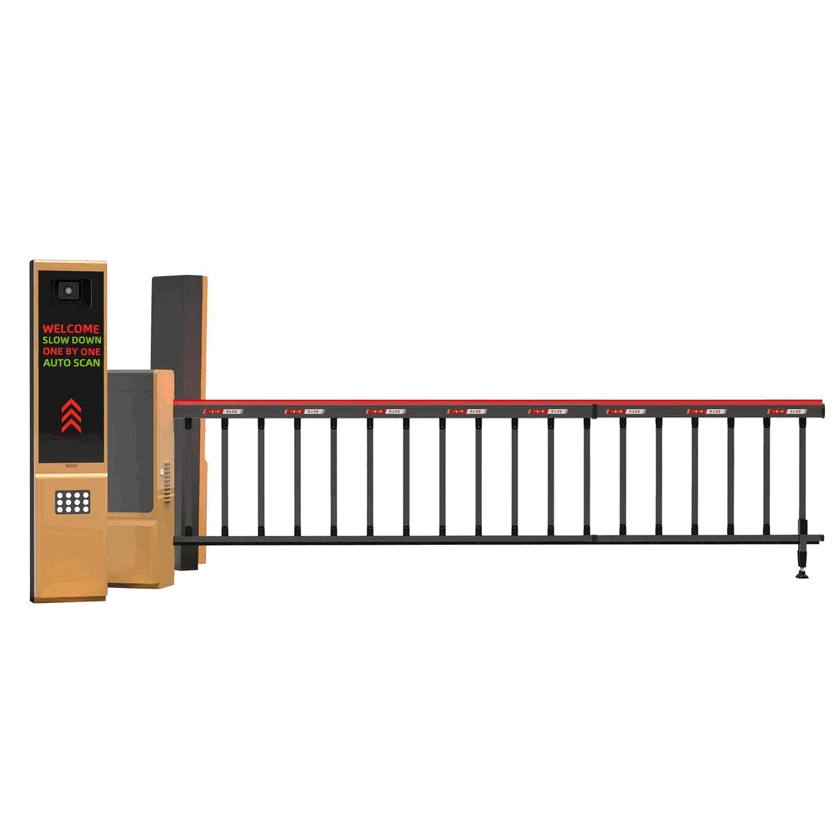

High-Speed Servo Motor Parking Barrier with Adjustable Road Arm - Smart Fast-Operating Vehicle Access Control & Boom Gate System for Philippine Properties
Classification :
PRODUCT DETAILS
Technical Specifications - Baroxon Industrial Parking Gate Barriers
| Access Type | RFID Proximity Card, Keypad PIN, Mobile App, UHF Tag | Special Features | Anti-Collision Rebound, Emergency Manual Clutch, Loop Detector Port, Infrared Beam Interface |
| Storage Medium | Cloud Storage, Local SD Card | Chassis Material | 2.0mm Cold-rolled Steel, Stainless Steel Options |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby:<5W | MCBF | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
Packaging and Logistics
| Selling Units | Single item with reinforced export wooden crating |
Baroxon delivers reliable automatic parking barrier gate systems engineered with high-speed integrated motherboard logic circuits and dependable smart card proximity verifications for premier commercial properties across Metro Manila and provincial sectors.
Our modular heavy duty security boom barrier solutions feature standardized structural frameworks designed to accelerate project deployment efficiency and streamline on-site preventive maintenance procedures.
Driven by high-torque DC brushless motors coupled with variable frequency inverter management, our portal gate operators guarantee exceptionally smooth, responsive, and quiet boom arm travel during heavy traffic flows.
Integrated lane security provisions feature vehicle anti-collision modules, automated auto-rebound obstruction detection, and emergency manual clutch releases during power outages, making them ideal companions for advanced ALPR license plate recognition system setups.

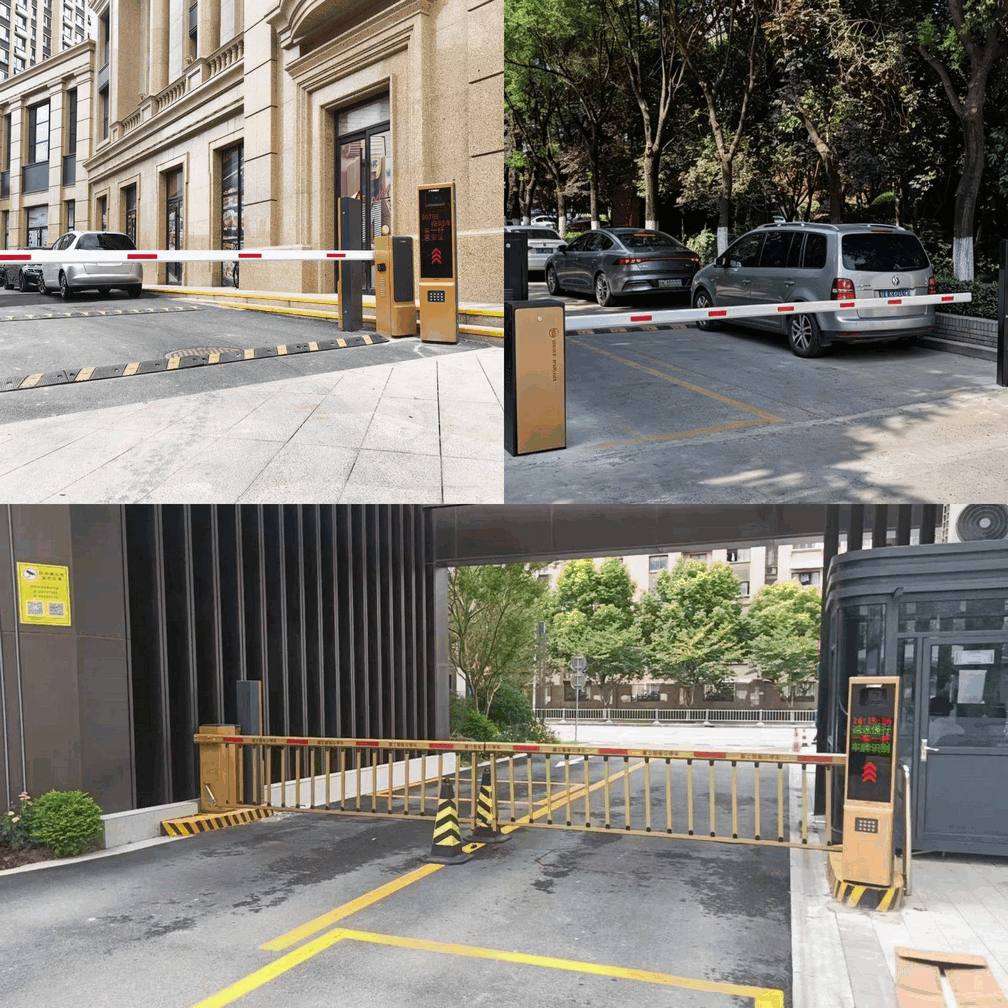

Product Demonstrations & Field Quality Tests
Component Structure Details & Mechanical Breakdowns
About Baroxon - Premier Traffic Barrier Gate Manufacturer
As a frontline manufacturer in perimeter physical security systems, Baroxon specializes in comprehensive engineering and vehicle access control hardware installations for corporate offices, industrial estates, and urban traffic management networks.
Strategic Industrial Position: Deep expertise in fabricating heavy-duty straight-arm automatic barriers, fence-style security barriers, and integrated license plate recognition software.
Extensive Distribution Network: Trusted by property developers, parking integrators, and contractors across the Philippines, United States, United Kingdom, Canada, and Australia.
Technical Blueprint Assistance: Providing physical site surveys, access control network planning blueprints, and installation guidance documents for partner technicians.
Modular Chassis Design: Optimized mechanical layouts built to minimize on-site installation time and cut down periodic maintenance expenditures.
Proprietary Innovations: Backed by over 100 independent industry patents covering brushless inverter circuit controllers and ground sensor anti-collision logics.
Extensive Manufacturing Experience: Over 20 years dedicated to the research, development, and assembly of commercial automatic gate operators.
Emergency Response Commitment: Guaranteed 60-second digital messaging response, 2-hour technical troubleshooting, and issue resolution within 48 hours.
Manufacturing Facility & Production Capacity
Frequently Asked Questions (FAQ)
Q1: How can the opening and closing travel speeds of the portal arm be configured?
A: Operational speeds can be flexibly calibrated via the core mainboard logic circuit, ranging from 0.6s to 6s, making it seamless to pair short arms for high-speed toll lanes or long arms for factory check-points.
Q2: Can this automatic lane barrier system operate using solar panel power supplies?
A: Yes, absolutely. Because our core drive modules utilize low-voltage DC 24V brushless motors that save electrical energy, this setup connects seamlessly with off-grid solar panel chargers and external backup batteries.
Q3: What is the maximum boom arm span length supported by this chassis unit?
A: Our heavy-duty structural sasis design supports high-strength lightweight aluminum alloy arms ranging from 1m up to a maximum span of 6m. Articulated folding arm options are available for low ceiling heights like basement parking structures.
Q4: Is this automated road gate cabinet compatible with local cashless parking systems?
A: Yes, our primary control board provides standard interface terminals including dry contacts, RS485 ports, and Wiegand protocols for direct connection to LPR cameras, ticket dispensers, RFID card tappers, and QRIS electronic payment systems.
Q5: How resilient is the protective machine housing against rust in outdoor environments?
A: Our outdoor chassis housings are manufactured from 2.0mm thick cold-rolled steel with IP54/IP65/IP66 sealing standards, finished with multi-stage anti-UV powder coatings to prevent corrosion from heavy rain and extreme heat.
Q6: What active safety features are integrated to minimize vehicle impact accidents?
A: The system adopts an auto-reverse current load detection algorithm that raises the arm instantly upon touching lightweight lane objects. It also features infrared photocell inputs, underground loop detector wiring, and manual clutch levers for power outages.
Q7: What is the estimated lifecycle service limit of this gate opening mechanism?
A: Thanks to precision high-tolerance sinusoidal transmissions and anti-wear industrial gears, our brushless motor modules achieve Mean Cycles Between Failure (MCBF) records ranging from 5 million to 10 million continuous open-close cycles.
Commercial Sales Contact
Contact the Baroxon commercial sales team for project tender partnerships and wholesale manufacturing quotations: Email: [email protected] | WhatsApp: +8613405313100 | WeChat: +86 18660196023
