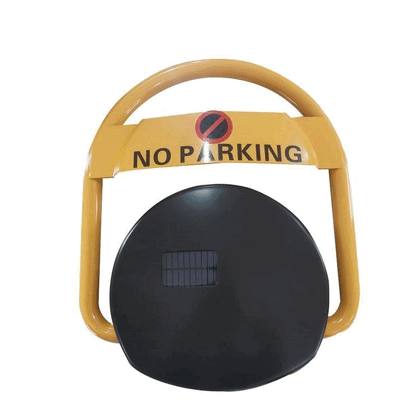

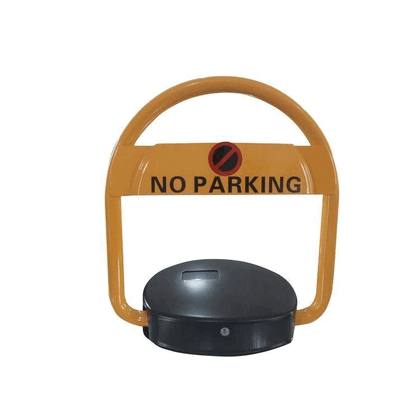

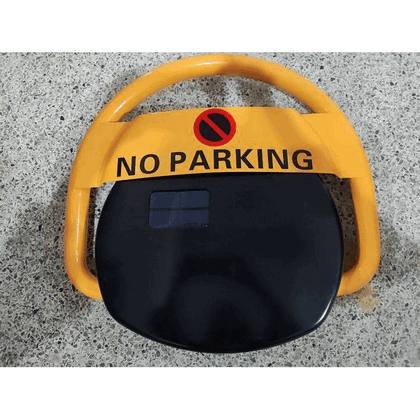

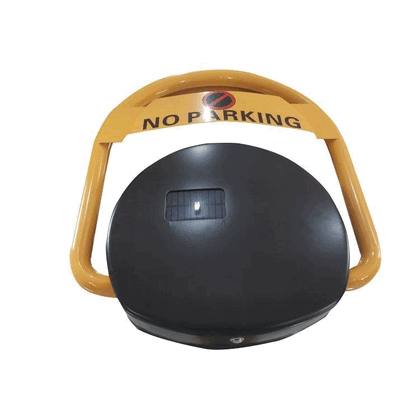

Heavy-Duty Automatic Parking Lock - Crash-Proof Steel Barrier for Industrial Zones, Manufacturing Plants, and Factory Security
Classification :
PRODUCT DETAILS
Key Attributes - Professional Parking Management Systems
| System Type | Professional Parking Management System Philippines / Digital Parking Lock | Place of Origin | Shandong, China (Premium Export Standard) |
| Brand Name | Baroxon | Model Number | Ba-CL-04 PRO |
| Warranty | 2 Years (After-sales Support) | Sales Unit | Single unit / Wholesale Project Bulk |
Product Description - Intelligent Remote Control Smart Parking Lock
Baroxon Smart Remote Control Parking Lock Specifications:
The intelligent automatic parking barrier device from Baroxon is a premium unit integrating advanced photoelectric sensor positioning and a heavy-duty anti-collision mechanical chassis structure. Designed with a modern aesthetic circular shape, this tool offers full protection coverage, innovative component structures, and powerful functionality. This automatic parking system is the ideal solution for Building Managers, real estate developers, and exterior contractors to prevent unauthorized parking spot hijacking in elite residential areas, Malls, hotels, office complexes, and airport zones across Manila, Cebu, Davao, and Quezon City.
High-Quality Premium Materials:
- Base Chassis: High-strength cold-rolled steel
- 180-degree flexible anti-collision alarm system
Key Features for Philippine Project Procurement:
* Smart Intelligence: Anti-collision sensor technology integrated with a wireless remote control range of up to 20 Meters. An automatic alarm sounds immediately if the barrier arm detects physical obstruction.
* Low Maintenance: Flexible power source options between Accumulator Cell (rechargeable battery) or Dry Cell. Machine performance is highly stable and durable for outdoor operation in the Philippine tropical climate.
* Heavy-Duty Construction: Features an IP67 water-resistance rating. The smooth circular design combined with thick steel material ensures the chassis does not undergo physical deformation. The unit can withstand vehicle pressure loads up to 500kg when lowered (Tire-Resistant).
* Motor Security Protection: The automatic circuit breaker system activates instantly if extreme external force stops the lever arm, protecting the drive motor from short circuits.
* Smart Power Indicator: Visual LED flash or internal buzzer alarm alerts the user when the battery level is low and requires recharging.
* Auto-Reset Function: The rocker arm automatically rises back to the original position within 3-5 seconds after external pressure is removed.
* Anti-Theft Security: Ground anchor bolts are hidden securely inside the locking cover, accessible only via a manual key held by the slot owner.
* Multi-Unit Control: One wireless remote control unit can be programmed and synchronized to operate multiple Baroxon automatic parking barriers simultaneously for optimal area management efficiency.
INTERNAL COMPONENT STRUCTURE SCHEMATIC DIAGRAM
1. Rocker Arm Assembly | 2. Alarm Siren Module | 3. Battery Compartment | 4. External Chassis Box Assembly
5. Photoelectric Sensor | 6. Drive Shaft | 7. Anti-Collision Device
8. Gearbox | 9. Electric Motor | 10. Control Mainboard
Technical Note: Periodically clean dust, sand, and gravel around the chassis to maintain maximum "Parking Security" performance and extend the device's service life.
Technical Specifications - Baroxon Automatic Parking Systems
| Included Accessories | Remote control*2, Manual Key*2, Solar Cell Panel*1, Expansion Anchor Bolts*3, User Manual*1 | ||
| Operation Method | Wireless Remote Control / Manual Power-down | Motor Model | KR-540 DC reduction motor (High Torque) |
| Chassis Material | Thick Cold-rolled steel plate | Physical Dimensions | 400*460*75(mm) or 550*460*90(mm) |
| Base Thickness | 2/3(Connection Part)mm | Casing Thickness | 2.0mm |
| Pipe Wall Thickness | 1.1mm | Gross Weight (G.W) | 8KGS |
| Net Weight (N.W) | 7KGS | Packaging Size | 480*480*90(mm) |
| Motor Output Power | 10W | Operating Time | ≤5s (High-Speed Quick Response) |
| Voltage | 4V | Arm Lift Height | 400mm |
| Working Current | ≤0.85A | Control Range | ≥15m |
| Project Advantages | 1. Extreme pressure resistance: Can withstand 3-5 ton vehicle crush. 2. Max waterproof protection: Certified outdoor rating IP67 (Water-Resistant). | ||
Special Project Procurement Explanation
1. Solar Power Integration: The top casing cover is specially designed using eco-friendly panels with integrated smart circuits, capable of absorbing solar energy for non-stop power supply.
2. Sealed Base Chassis: The internal base section uses a fully insulated aluminum alloy material, ensuring superior water-resistance properties and corrosion resistance levels far better than ordinary iron plates, effectively preventing rust in high-humidity regions.
3. Dual Mode Supply System: Supports the use of combined rechargeable battery/lithium cells with automatic solar power panels for 24/7 autonomous operational cycles without the need for periodic manual charging.
Video: Installation Guide and Vehicle Crushing Endurance Test for Baroxon Ba-CL-04 Automatic Parking Lock in Manila Commercial Buildings
F.A.Q - Baroxon Philippines Customer Service Center
Q: Is the Ba-CL-04 unit safe to install in open areas exposed to heavy rain?
A: Certainly, it is very safe. The entire device body is designed with industrial-standard IP67 waterproof protection and a sealed aluminum base internal structure to prevent water seepage, ground moisture, and rust corrosion.
Q: How long does the internal battery last under daily operational conditions?
A: Standard dry battery usage can last for over 1 year. For the rechargeable accumulator cell option combined with our Solar Cell panels, power is automatically replenished by sunlight, providing virtually unlimited service life for managing high-traffic "Parking Spots."
Q: Can developers or agencies order with custom logos for high-rise building projects?
A: Yes, we facilitate full-scale OEM customization services for civil contractors, property developers, and building managers across the Philippines. We also accommodate solar panel cover shape customization based on your project design preferences.
Q: What happens if a visitor's car accidentally hits or drives over the lock's lever arm?
A: The 180-degree anti-collision protection alarm system immediately triggers a loud warning, and the mechanical rocker arm automatically lowers following the direction of pressure, then resets back within 3-5 seconds after the car moves away to prevent fatal damage to internal gears.
