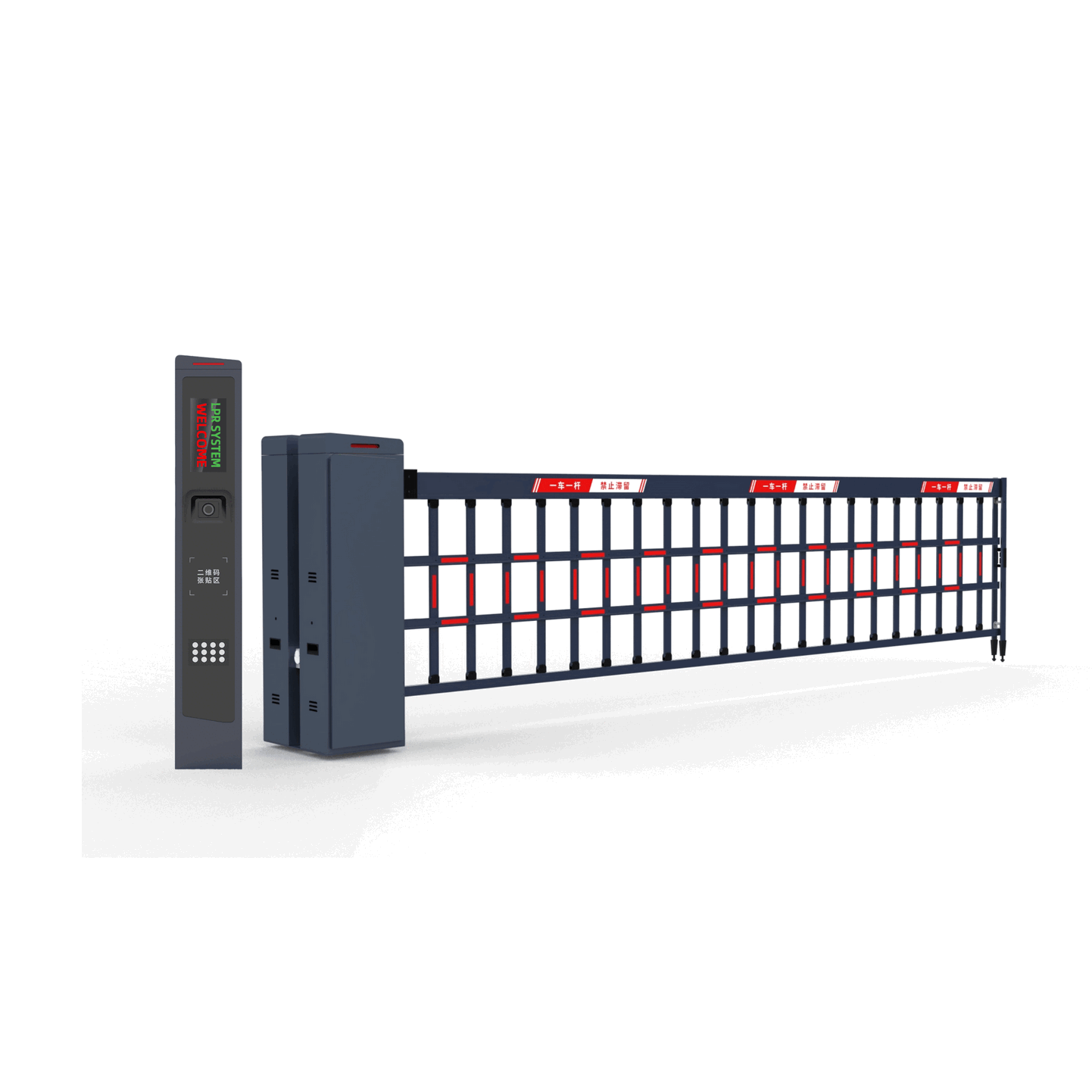

Enterprise ALPR Parking Management System & Smart Vehicle Recognition Software - Cloud-Connected Access Control Solution for Philippine Businesses
Classification :
PRODUCT DETAILS
Key Specifications & Technical Parameters - Baroxon High-Performance Security Parking Barrier Gate
| Access Credentials | RFID Card, Passcode, Key Fob, Mobile Smartphone App, UHF Tag | Advanced Safety Features | Anti-Tailgating, Digital Siren Alert, Vehicle Motion Detection, Night Vision Support, Time & Attendance Tracking |
| Storage Medium | Cloud Server, Embedded Memory Card | Chassis Construction Material | Cold Rolled Steel, Premium Stainless Steel, Durable Zinc Alloy |
| Country of Origin | Shandong, China | Model Designator | YH-PDPY601 |
| Manufacturer Brand | Baroxon | Motor Drive Unit | DC 24V Brushless / AC 110V / Servo Motor |
| Operational Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Velocity | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Configuration | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Span Length Options | 1m - 6m (Customizable) |
| Power Requirements | Peak: 140W / Standby:<5W | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million times |
| Cabinet Build & Finish | 2.0mm Cold-rolled Steel / Powder Coating | MTTR (Mean Time to Repair) | < 30 mins |
| Weatherproof IP Rating | IP54 / IP65 / IP66 |
Packaging and Export Logistics
| Unit Package Selling | Single item packed in reinforced export-grade wooden crating with damp-proof wrapping. |
Smart Microprocessor Logic Board: Engineered with an intuitive embedded motherboard tailored for Metro Manila business districts and provincial commercial hubs, enabling fast local credential enrollment, quick calibration, and seamless field configuration for high-volume vehicle checkpoints. Explore our primary portal at automatic parking barrier gate for complete municipal layouts.
Modular Structural Chassis Layout: Standardized internal engineering dramatically streamlines installation across Philippine toll plazas, residential subdivisions, and corporate hubs, ensuring rapid deployment and minimal maintenance overhead.
High-Torque Brushless Motor Technology: Built with robust DC brushless motor mechanics and frequency-conversion damping to provide exceptionally smooth arm placement, vibration reduction, and silent operation.
Proactive Multi-Tier Safety Protocols: Equipped with responsive obstruction-detection auto-rebound, active anti-collision monitoring, and manual clutch levers to guarantee safe operations during sudden blackouts or power failures.
Seamless Peripheral Integration: Features standard terminal block wiring designed to interface directly with RFID reader poles, pedestrian speed gates, and smart ticketing platforms. Discover our high-performance hardware collection via electric boom barrier units.
Enterprise-Grade Vehicle Lane Security: Ideal for non-stop traffic regulation across commercial shopping malls, BPO office towers, industrial zones, gated residential communities, and upscale condominiums throughout Southeast Asia.
Product Demonstration & Quality Assurance Videos
Watch our rigorous stress tests and field demonstrations of our automatic security boom barriers below:
Product Structure Images & Component Display
About BAROXON - Leading Manufacturer of Automatic Parking Barriers and Access Solutions
As a trusted international manufacturer in perimeter security and vehicle access control, Baroxon delivers turnkey engineering solutions for intelligent parking systems, highway toll lanes, and commercial real estate security. For complete software and hardware insights, review our specialized portal on smart license plate recognition parking system integrations.
Strategic Market Focus: Specialized engineering in heavy-duty straight arm operators, multi-rail fence boom gates, articulated folding mechanisms, and smart automated number plate recognition systems.
Global Distribution Network: Supplying reliable traffic hardware to municipal highway tolls, corporate facilities, and gated subdivisions across over 200 countries, including the Philippines, United States, and Southeast Asia.
Comprehensive Project Assistance: Delivering professional site layout planning, technical architectural drawings, and field installation training for system integrators.
Practical Structural Engineering: In-house tooling and precision casting molds designed for rapid deployment, hassle-free setup, and extended structural life cycles.
Proven Technological Innovation: Holding over 100 core patents covering DC brushless motor mainboards, frequency control systems, and automated safety sensors.
Experienced Technical Team: Over 20 years of continuous specialization in industrial vehicle access control and automated road barrier manufacturing.
Responsive Customer Commitment: 1-minute initial online response time, professional technical resolution within 2 hours, and rapid closed-loop support within 2 days.
OEM Customization Capabilities & Showroom
Product Mechanical Advantages

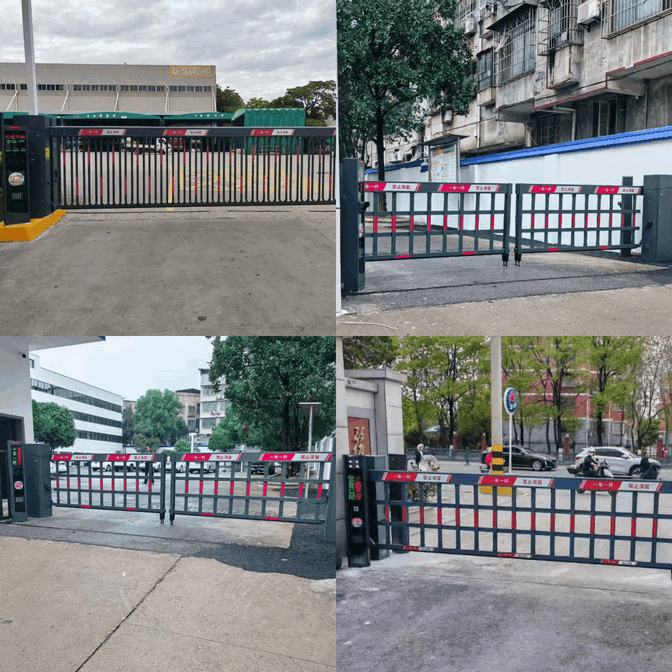

Real-World Project Application Photos
Advanced Manufacturing Factory & Company Overview
Live Traffic Situation Images
Competitive Advantages & Certifications
Factory Profile & Extrusion Workshop
Expanded Company Profile & Global Logistics
Frequently Asked Questions (FAQ)
Q1: What is the adjustable operating speed range of the boom arm on this unit?
A: The dynamic operating speed ranges smoothly between 0.6s / 0.9s / 1.5s - 6s (Adjustable). Speed parameters can be easily reconfigured directly on the main control board to suit various arm lengths and traffic flow volumes.
Q2: Are the control board power inputs compatible with alternative electrical systems?
A: Yes, our motherboard architecture natively accommodates AC 110V or AC 220V inputs. For remote off-grid locations, these energy-efficient DC 24V brushless motors can also be integrated directly with solar panel setups and backup batteries.
Q3: What maximum boom arm lengths are supported by this cabinet mechanism?
A: The heavy-duty housing drives high-tensile-strength aluminum alloy arm profiles ranging from 1m to 6m (Customizable). For low-ceiling basement parking structures, we offer dedicated 90° or 180° articulated folding arm configurations.
Q4: Can this barrier system integrate with existing ANPR license plate cameras and ticket kiosks?
A: Absolutely. The main control board features dry-contact relays, RS485 communication protocols, and Wiegand interfaces, enabling plug-and-play synchronization with automated number plate recognition systems and RFID long-range readers.
Q5: Is the equipment cabinet built to withstand harsh tropical outdoor environments?
A: Yes, our enclosures are specifically engineered for severe outdoor weather conditions, providing IP54 / IP65 / IP66 protection ratings backed by UV-resistant powder coating over a robust 2.0mm cold-rolled steel chassis.
Q6: What built-in safety systems protect vehicles and pedestrians from impact?
A: The motor controller utilizes advanced current-feedback sensors that instantly trigger an auto-rebound function upon detecting physical contact. Dedicated terminals are also provided for infrared photocells, loop detectors, and mechanical manual release clutches.
Q7: What is the certified operational lifespan of this drive motor assembly?
A: Driven by high-precision sinusoidal transmissions and premium industrial gears, our DC brushless powertrains achieve an MCBF rating of 3 million / 5 million / 10 million cycles under 100% continuous duty without requiring frequent maintenance.
